KosmosMulti Phaser
Kosmos is a phaser built for endless motion. Choose 2 to 8 stages to reach nearly every classic phaser sound and plenty of new ones, sync the sweep to tempo, and tap in new rhythms live without changing your tone. A full 0 to 100% mix lets you add a hint or go all the way.
Pot 5 · No. of poles
From vintage to deep space
More poles means more notches sweeping through your sound. Step through them to see a light, vintage swirl turn into deep, complex motion.
Select
Two poles: one gentle notch. Light, airy and vintage.
Audio demos
Listen
Straight from the pedal. Headphones help.
Kosmos moving through a band arrangement.
Kosmos phasing a bass line.
Controls

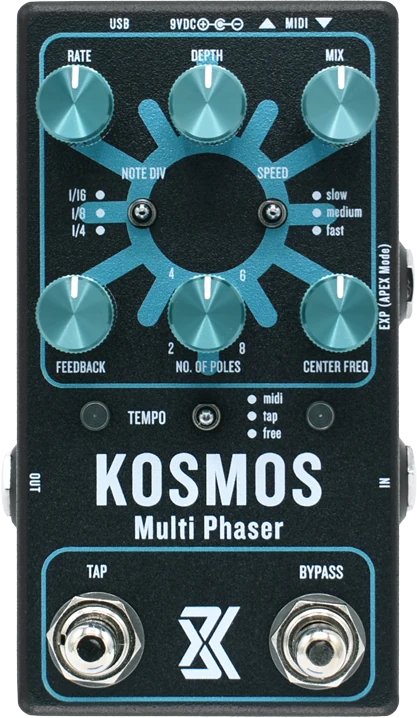

The panel
Six knobs shape the sweep and how many stages it runs through; three switches set the synced rate, a quick speed and the timing source.
- Pot 1
- RateSpeed of the sweep, from slow evolution to fast, rotary-like shimmer.
- Pot 2
- DepthHow strongly the sweep moves through the signal.
- Pot 3
- Mix0 to 100% wet, rare on a phaser.
- Pot 4
- FeedbackEmphasis at the peaks, from smooth to vocal and resonant.
- Pot 5
- No. of Poles2 to 8 stages, from light and vintage to deep and complex.
- Pot 6
- Center FreqThe tonal center of the sweep.
- Switch 1
- Note Div1/16, 1/8 or 1/4 note when synced; stereo mode in Free.
- Switch 2
- SpeedQuick slow, medium or fast selector.
- Switch 3
- TempoMIDI clock, tap or free.
- Left switch
- TapTap in time to lock the sweep to the song.
- Right switch
- BypassEngages or bypasses Kosmos.
Specifications
Built for your whole rig
- Stages
- 2 to 8 poles
- Mix
- 0 to 100% wet
- Sync
- 1/16, 1/8 or 1/4 note, tap or MIDI clock
- Stereo
- Mono, stereo and wide output modes
- Audio
- 24-bit / 96 kHz processing
- MIDI
- Type-A TRS In and Thru, full CC control
- Expression
- APEX: assign any supported knob to an expression pedal
- Presets
- 128 onboard, managed in Keystone Control Center
- Updates
- Free lifetime firmware over USB
- Power
- 9V DC center-negative, regulated
- Warranty
- One year
Kosmos is one of seven dynamic effects from Keystone Musical Instruments, an American company based in Bensalem, PA. Every Keystone pedal shares the same small enclosure, MIDI control, APEX expression and free firmware updates, so they work together on one board. Its LED glows teal, its signature color.
Put Kosmos on your board
Try it in your rig for 30 days. If it isn't for you, send it back.
